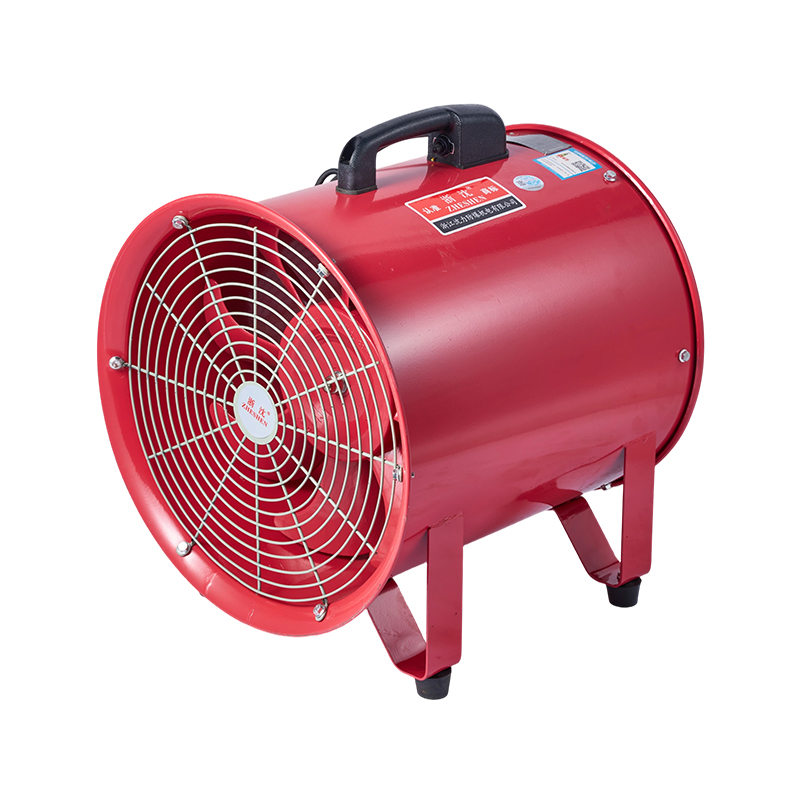

The CTF series low-noise axial flow fan represents a new generation of low-noise ventilation product...
+ VIEW MORECentrifugal Ventilator
The Model 4-72 centrifugal ventilator is designed to convey air and other gases that are non-flammable, harmless to humans, and non-corrosive to steel. The gas stream must be free of viscous substances, and the concentration of dust and hard particulate matter contained within it must not exceed 150 mg/m³. The gas temperature must not exceed 80°C. This ventilator features excellent starting performance, smooth operation, low vibration, high efficiency, and a long service life; it is available in four structural configurations: Types A, B, C, and D. This ventilator is widely utilized for indoor ventilation and air exchange in industrial and mining enterprises, large-scale buildings, hotels, restaurants, and similar facilities.
| Immediately | Import and export size | Import and export size | ||||||||
| D1 | D2 | D3 | A1 | A2 | A3 | A4 | A5 | A6 | n1-d1 | |
| 2.8 | 270 | 310 | 328 | 195 | 235 | 270 | 220 | 260 | 295 | φ10 |
| 3.2 | 310 | 350 | 375 | 220 | 260 | 290 | 255 | 295 | 330 | φ10 |
| 3.6 | 360 | 390 | 415 | 250 | 290 | 325 | 285 | 325 | 362 | φ10 |
| 4 | 395 | 435 | 465 | 280 | 320 | 355 | 320 | 360 | 395 | Φ10 |
| 4.5 | 450 | 485 | 515 | 315 | 355 | 390 | 360 | 400 | 435 | φ10 |
| 5 | 500 | 535 | 565 | 350 | 390 | 425 | 400 | 440 | 475 | φ10 |
| 5.6/18.5kW | 550 | 600 | 620 | 390 | 442 | 490 | 430 | 480 | 528 | φ6.8 |
| 6 | 600 | 645 | 690 | 415 | 462 | 500 | 465 | 512 | 555 | φ10 |
| 7.1 | 690 | 760 | 790 | 576 | 626 | 676 | 495 | 545 | 595 | Φ12 |
| 8 | 790 | 850 | 890 | 640 | 710 | 766 | 568 | 635 | 692 | Φ15 |
| Immediately | Shape and installation dimensions | ||||||||||
| G | M | L | F | N | L1 | L2 | L3 | L4 | L5 | n2-d2 | |
| 2.8 | 470 | 610 | 525 | 200 | 410 | 360 | 260 | 345 | 380 | 536 | φ12 |
| 3.2 | 530 | 630 | 560 | 225 | 405 | 460 | 375 | 345 | 380 | 625 | φ12 |
| 3.6 | 595 | 700 | 630 | 250 | 450 | 450 | 350 | 425 | 465 | 701 | φ12 |
| 4 | 660 | 855 | 710 | 280 | 575 | 550 | 450 | 465 | 510 | 768 | φ12 |
| 4.5 | 740 | 880 | 745 | 315 | 565 | 550 | 450 | 465 | 510 | 863 | φ12 |
| 5 | 820 | 970 | 890 | 340 | 630 | 800 | 700 | 545 | 595 | 959 | φ12 |
| 5.6/18.5kW | / | 980 | 990 | 365 | 615 | 900 | 700 | 525 | 560 | 1043 | φ12 |
| 6 | 960 | 1120 | 900 | 385 | 735 | 825 | 725 | 545 | 600 | 1146 | φ12 |
| 7.1 | / | 1165 | 1040 | 475 | 690 | 960 | 924 | 664 | 700 | 1363 | φ12 |
| 8 | 1 | 1314 | 1290 | 534 | 780 | 1250 | 1150 | 695 | 735 | 1536 | φ12 |
